Main parameters

Line speed

0-5m/s

0-8m/s

Wire winding cylinder motor parameters

AC220v 50Hz 300w

Total length of the cutting line

150m

Motorized angle table angle adjustment range

-----------

±10°

Motorized corner table repeatable positioning accuracy

------------

±450″

The center of the motorized corner table carries the weight

-----------

5kg

Sample weight(max)

10kg

3kg

Electric turntable rotation angle

---------

0-360°

Repeatable positioning accuracy of motorized rotary tables

---------

0.02°

Manual angle table angle adjustment range

±15°

------------

Manual angle adjustment accuracy

5′

--------------

Manual turntable rotation angle

0-360°

------------------

Manual turntable rotation angle accuracy

5′

------------------

Z-axis travel

≤160mm

Y-axis travel

≤180mm

Cut sample diameter (max)

Φ150mm

Tensioned structure

Pneumatic tensioning

Exterior structure

Semi-closed

Fully enclosed

Tension adjustment range

0.1-0.4MPa

Diamond wires use diameters

＜0.45mm

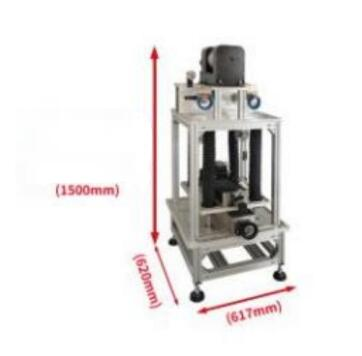

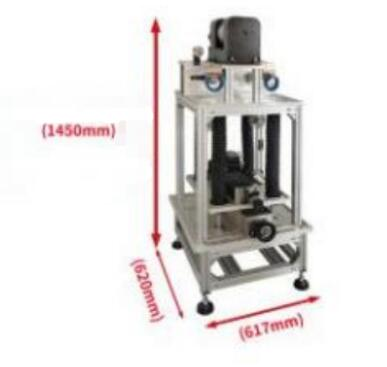

Overall dimensions (length x width x height mm)

617x620x1450mm

617x620x1500mm

Machine weight

≈180kg

Functional use

1. Ceramic materials: alumina ceramics, zinc oxide ceramics, zirconia ceramics, target ceramics, honeycomb ceramics, semiconductor ceramics, conductive ceramics, non-conductive ceramics, etc.;

2. Crystal materials: graphite, silicon crystals (solar polysilicon, single crystal silicon), sapphire, alumina crystals, infrared glass crystals, alumina crystals, silicon carbide crystals, cesium iodide crystals, etc.;

3. Glass materials: sulfur glass, optical glass, quartz glass, infrared glass, glass tube, etc.;

4. Metal materials: iron, aluminum, copper, titanium alloy, magnesium alloy and other metals and alloys, non-ferrous metals (zinc sulfide, ferrite), etc.;

5. Composite materials: PVC board, carbon fiber composite material, glass fiber composite material, etc

6. Rock materials: natural rock, jade, meteorite, Pei Cui, agate and other precision cutting, precision slices of various high-value materials, geological light sheets, geological thin sections (sedimentary rock, magmatic rock, metamorphic rock, ore) and other square sections.

7. Thermoelectric materials: bismuth telluride, lead telluride, silicon germanium alloy, etc

8. Infrared optical materials: zinc selenide, zinc sulfide, silicon, germanium and other crystals

9. Biomedical materials: bioplasticized specimen sections (human animal organs, jaw soft and hard tissue joint section, implant observation, tooth crown bridge, teeth and other histological specimens); Orthopedic joint sections of soft and hard tissues (living and hard tissues such as femur, hip joint, vertebral body, bone histology samples with implants, etc.); Cardiovascular and cerebrovascular stent sections, stone sections and other medical tissue sections;

......

Note: The material hardness is less than that of diamond wire can be precision cut.

Installation conditions

1. This equipment is required to be used below 1000m above sea level, temperature 25°C±15°C, humidity 55%Rh±10%Rh. 2. Water: None. 3. Electricity: AC220V 50HZ. 4. Gas: air source (0-1Mpa). 5. Working area size: 800mm*800mm. 6. Ventilation device: required.

1

Polyethylene (PE) tensioner

2 pcs

2

Polyethylene (PE) guide wheels

2 pcs

3

Diamond wire

2 volumes

4

water pump

1 pc

5

Resin ceramic block

2 pieces

6

Paraffin wax rods

4 roots

1

Diamond wire

（Ø0.125、Ø0.25、Ø0.35、Ø0.42mm）

(Optional)

2

Special oil for cutting

(Optional)

3

SCK series heating platform

(Optional)

5

Silent oil-free air compressor

(Optional)

6

DX-100 single crystal directional instrument

(Optional)

7

SCK-2500 electric upset

(Optional)
